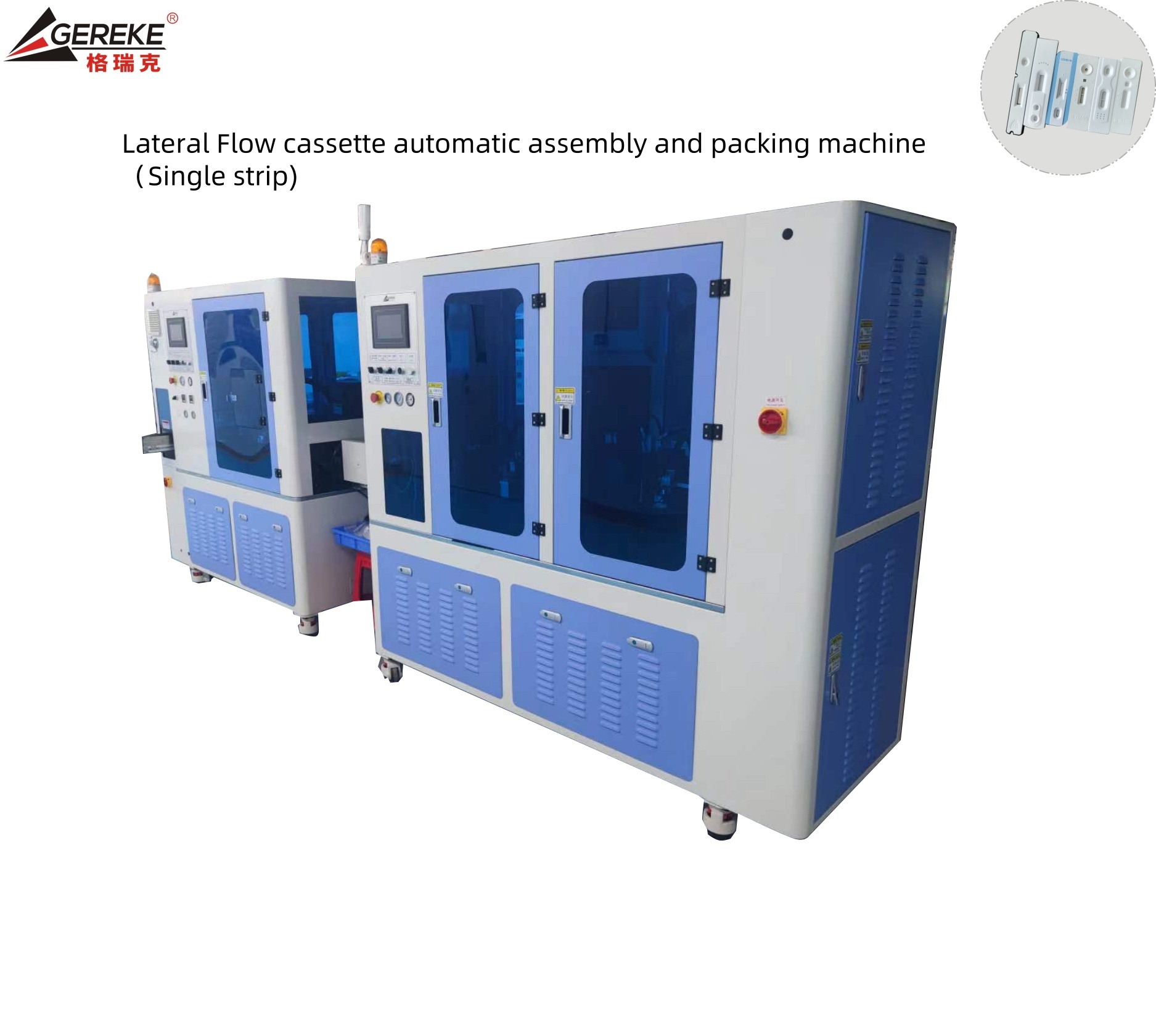

PLC System Automatic Assembly Machine For Single Window Test Cassette Packaging

This advanced automatic packaging machine is specifically designed for Single Window Test Cassette production, constructed from durable S45C steel for long-lasting performance in industrial environments.

• Intelligent System: High-quality PLC system integrated with touch screen and inverter for easy operation and energy efficiency
• Machine Transmission: High-performance electronic cam transmission system for stabilized and durable operation
• Feeding System: High-performance vibrating bowl feeder
• Controlled by PLC for precise operation
• Easy operation with reduced labor requirements
• Each section equipped with check sensors for quality control
• All components sourced from international brands

Cassette (top and bottom) feeding → Cassette present check → Cassette up and down check → Cassette turn over → Cassette forward and backward check → Cassette orientation → Strip cutting → Strip check → Strip fitting → Camera sensor check → Shift the top cassette to the bottom cassette → Press → Camera sensor check → Eject the bad one → Push the good one to the transfer belt → Cassette feeding → Pouch feeding and check → Desiccant feeding and check → Push the cassette and desiccant to the pouch → Check → Hot sealing → Discharge the good one → Eject the bad one

Designed for IVD (In Vitro Diagnostic) production manufacturers in plant environments.

A: Yes, we are a professional manufacturer and exporter specializing in the design, development and production of various special filling machines, assembly machines, packing machines and related equipment.

A: 1. The material of your product 2. The size of your product and the pattern 3. The shape of your product

A: 45-90 days after receiving the advance payment and samples

A: By sea, by air, by express

A: Yes, we have the CE certification

A: Installation manuals, Maintenance manuals, Electrical schematics diagram. For medical machines we will provide IQ, OQ and spare part list.

A: The majority of parts are 45# steels, while parts that contact with the product are made from stainless steel S304.

A: Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, Cash; Language Spoken: English, Chinese
